Model: TB20
Capacity: 2,000kg/BATCH

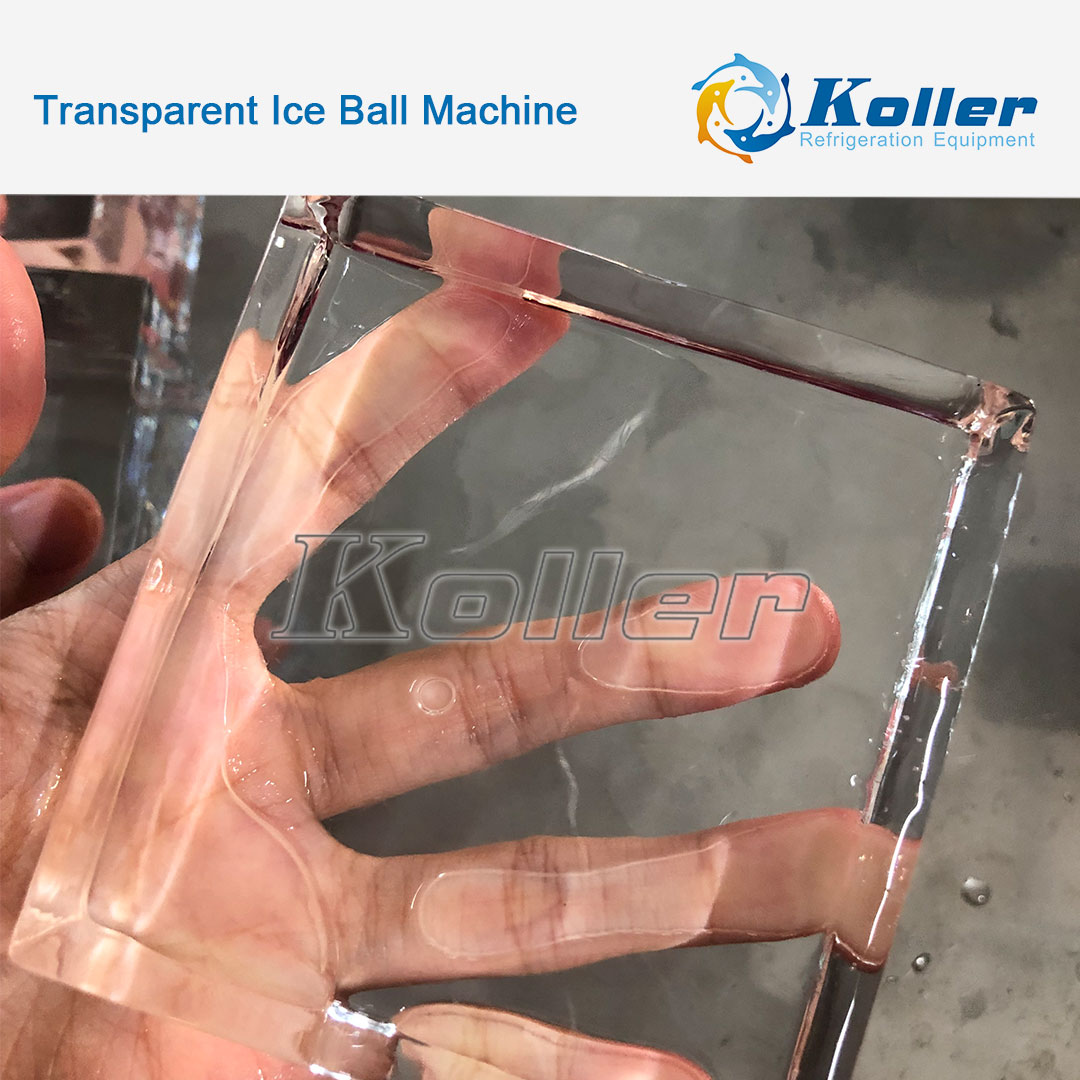

Ice shape: 100% Transparent block ice
Ice size: can be customized
Ice freezing time: it depends on the ice size, for the 25kg ice normally 48h per batch
Material of ice moulds: food-grade-aluminium

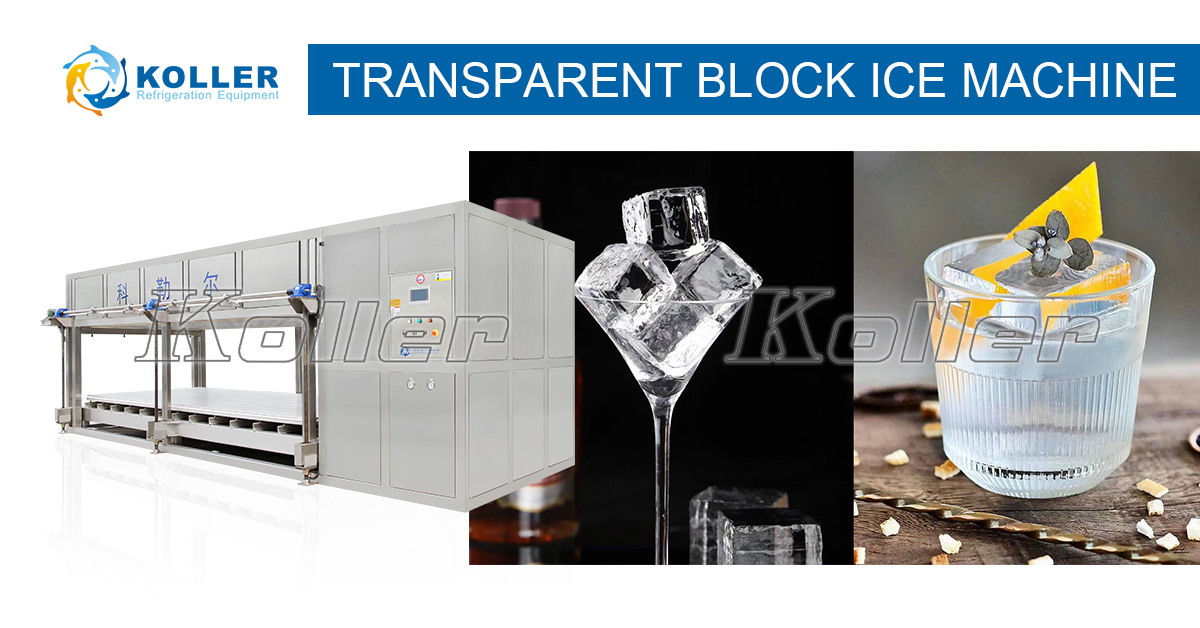

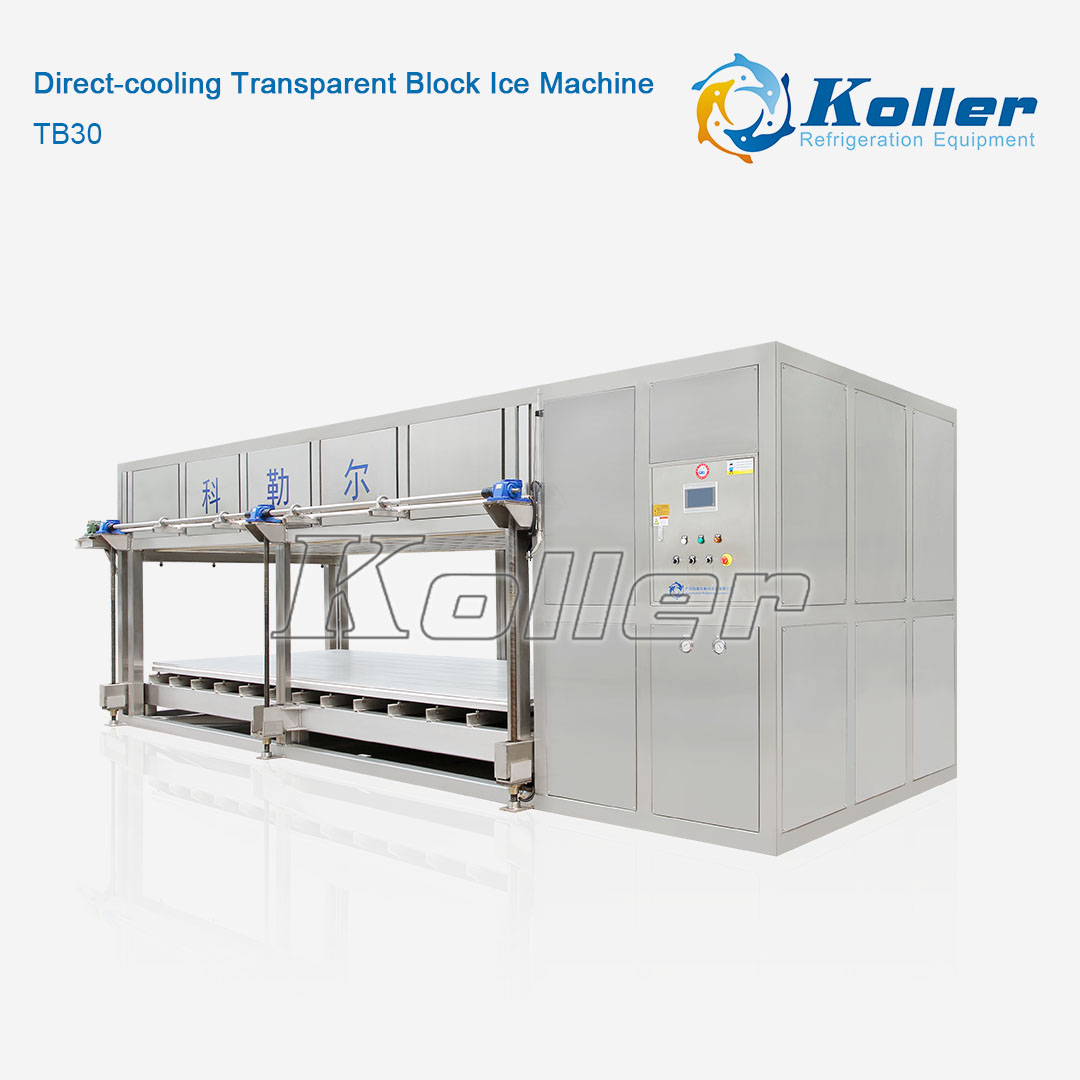

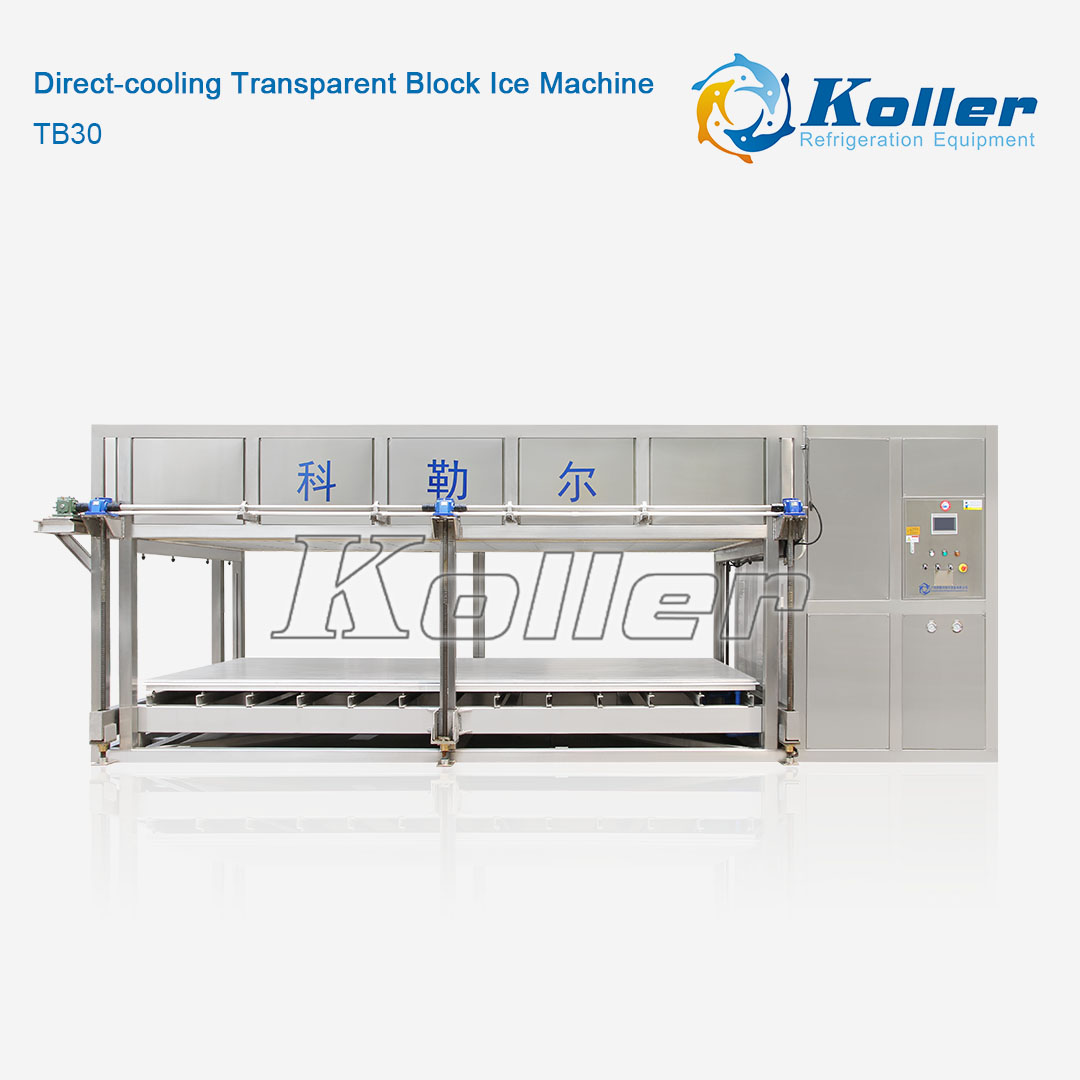

Koller Direc-cooling Transparent Ice Block Machine TB20 can produce 2tons transparent ice block per batch. As it uses a small capacity refrigeration unit, the ice freeze slowly so can be 100% transparent. Besides, the small capacity refrigeration unit can save energy consumption for you!
By adopting food-grade Aluminum moulds, the transparent ice blocks produced by Koller TB20 is very clean, edible and sanitary for human consumption, no harm on health.

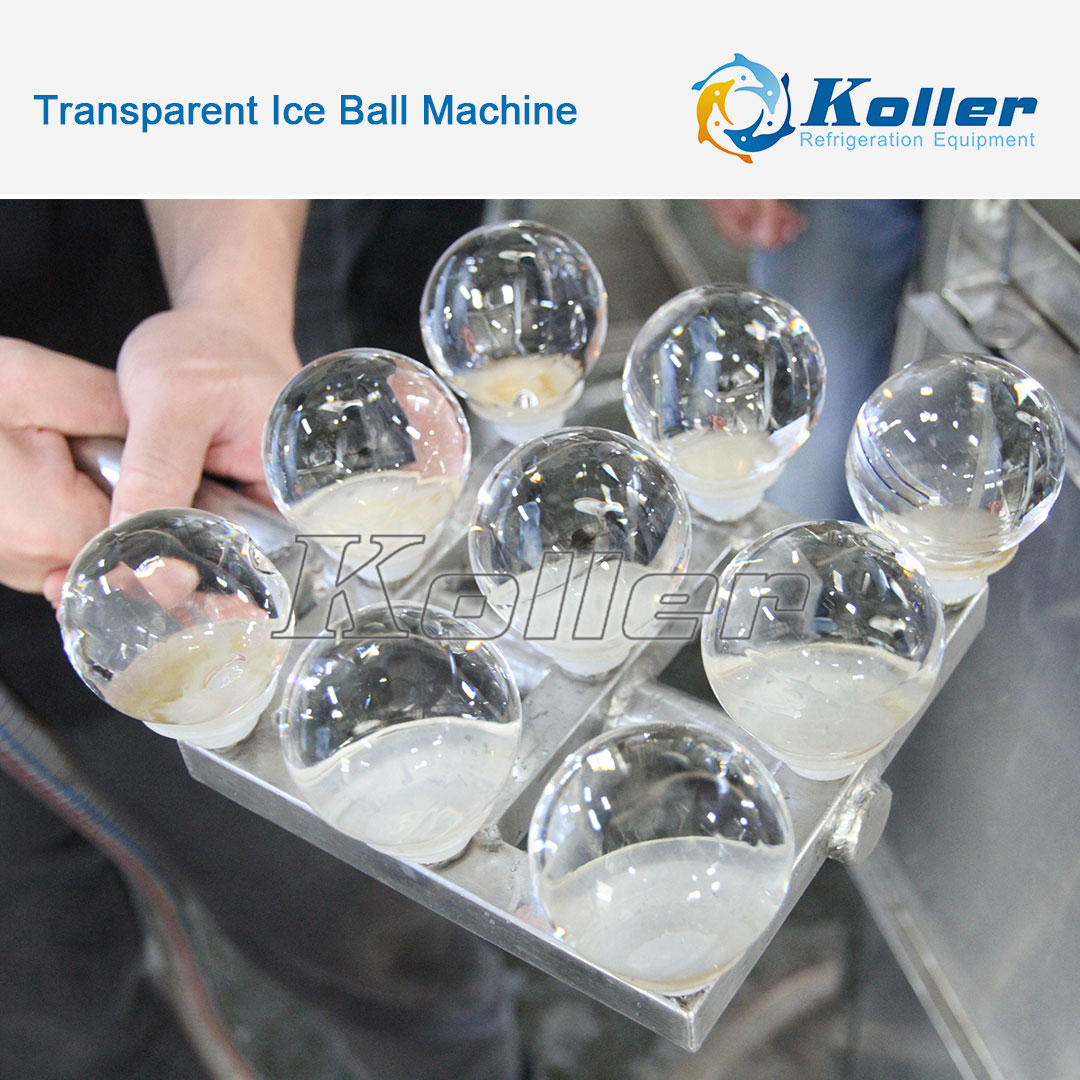

Equipped with koller ice cutting machine and ice ball machine, the transparent ice block can be cut into small ice cubes and ice balls. The total transparent crystal ice cubes and ice balls are popular in the high end occasions for cocktail cooling or other drinks cooling.
◆ Slow ice freezing, the ice can be 100% transparent.
◆ Sanitary, clean and edible ice blocks.
◆ Auto water adding, ice making and ice harvest.
◆ No need salt water.
◆ Food-grade aluminium ice moulds, anti-rust and anti-corrosive;
◆ Aluminium ice moulds assembled without welding. Will not deform or affect ice harvest;
◆ Ice bed can be movable or motor driven.
◆ Using a motor-driven automatic screw rod lifting system.
◆ Compact structure design, can save installation space and shipping costs for you;
◆ Perfect and special water-lock technology.
◆ Very strong framework, not easy to deform;
◆ 7 Patents.
Trading Terms: EXW, FOB, CNF, CIF
Payment Terms: T/T, L/C, Western Union, MoneyGram, by cash for offline orders.
|
Model |
TB10 |
TB20 |
||
|
Refrigerant |
R22/R404A/R507 |
R22/R404A/R507 |
||
|
Ice Block Weight (KG) |
25 |
50 |
25 |
50 |
|
Ice Block Quantity |
40 |
24 |
80 |
40 |
|
For more detailed information, please contact us to learn more. |
||||
◆ Refrigerant: R22/R404A/R507/R449
◆ Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;
(Notice: the actual ice production will be changed with input water temp and ambient temp.)
◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.
Since the establishment in 2004, Koller has always aimed at products’ quality and customers’ benefit, keep working on improving the performance and capacity of the machine, bringing in advanced refrigeration process equipment and testing equipment, adopting high-quality refrigeration accessories and electrical components, to make Koller’s products achieving high production, low-energy consumption and zero malfunction.
INSTALLATION
◆ Video guidance support.
◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)
◆ Field installation, commissioning and training if needed.
MAINTENANCE
◆ Reply within 24hours.
◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)
◆ Free component in one year warranty.
◆ Field maintenance and repair service if needen.
