Model: DK50
Capacity: 5ton/day
Ice shape: block ice
Ice size: 10kg/piece; 25kg/piece;
Ice dimension: 95mm*260mm*500mm; 123mm*350mm*710mm
Ice freezing time: 3 hours per batch; 8 hours per batch;
Model: DK50
Capacity: 5ton/day
Ice shape: block ice
Ice size: 10kg/piece; 25kg/piece;
Ice dimension: 95mm*260mm*500mm; 123mm*350mm*710mm
Ice freezing time: 3 hours per batch; 8 hours per batch

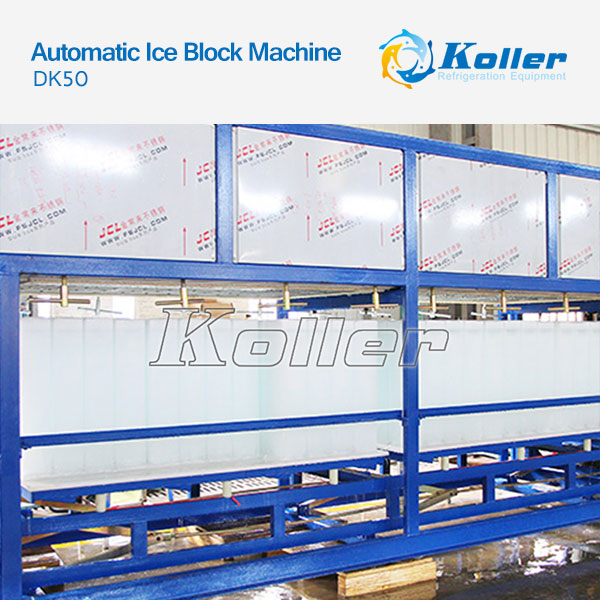

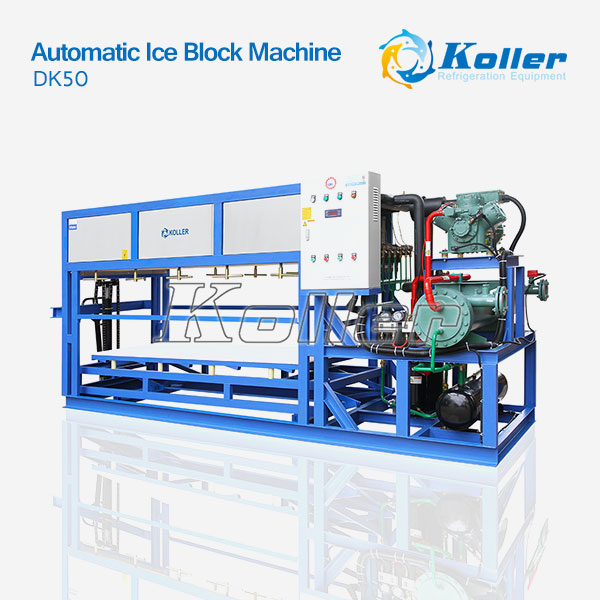

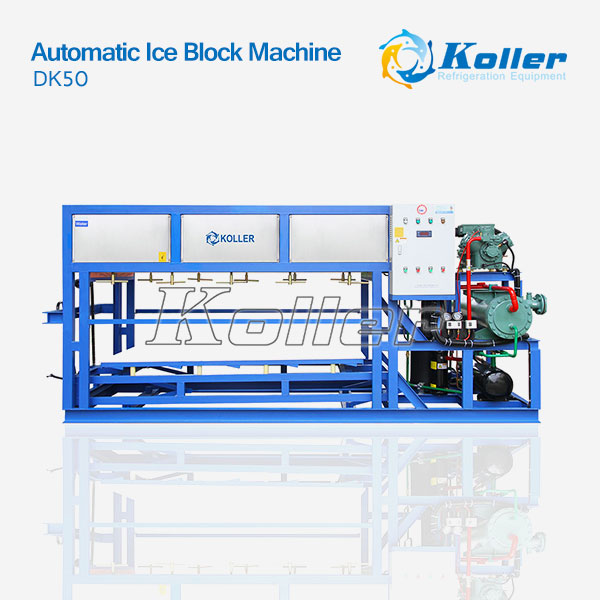

Koller Automatic Ice Block Machine DK50 can produce 5tons ice block in 24 hours. By adopting food grade quality Aluminum plate, the ice blocks produced by DK machine is very clean, edible and sanitary for human consumption, no harm on health.
◆ Short and fast ice freezing time.
◆ Sanitary, clean and edible ice.
◆ Auto water adding, auto ice making and ice harvesting.
◆ Evaporated directly without salt water.
◆ Take less space, convenient to transport, low cost.
◆ Stainless steel mainframe, anti-rust and anti-corrosive.

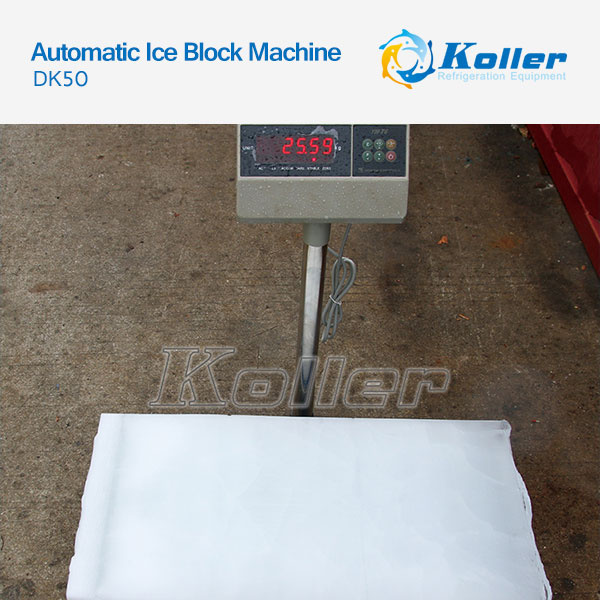

Ice Size
Trading Terms: FOB, CIF, CNF, EXW
Payment Terms: T/T, L/C, Western Union, MoneyGram, by cash for offline orders.
◆ Refrigerant: R22/R404A
◆ Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;
(Notice: the actual ice production will be changed with input water temp and ambient temp.)
◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.
Since the establishment in 2004, Koller has always aimed at products’ quality and customers’ benefit, keep working on improving the performance and capacity of the machine, bringing in advanced refrigeration process equipment and testing equipment, adopting high-quality refrigeration accessories and electrical components, to make Koller’s products achieving high production, low-energy consumption and zero malfunction.
INSTALLATION
◆ Video guidance support.
◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)
◆ Field installation, commissioning and training if needed.
MAINTENANCE
◆ Reply within 24hours.
◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)
◆ Free component in one year warranty.
◆ Field maintenance and repair service if needen.
